Fireco Telescopic 'Steady' Mast With Locking Collars

Fireco "Steady Masts" are similar to the Partner masts, but they are fitted with locking collars to secure each section of the mast to the previous section. A steady mast is used for applications where the extended height is maintained for long periods of time.

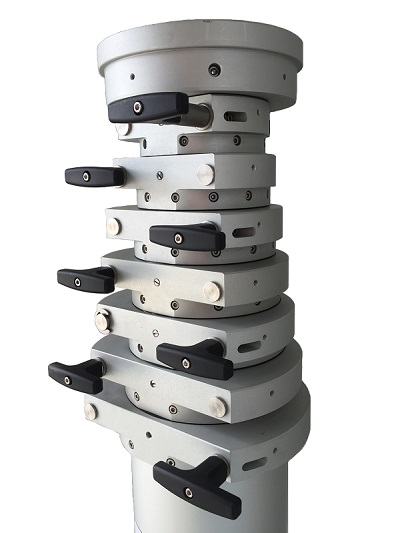

Fireco Steady Telescopic Mast

{slider OVERVIEW|closed}

FIRECO “STEADY” Telescopic Masts are pneumatically operated masts that use locking collars to keep the mast sections raised without the need of air pressure. The locking collars use a T-handle on each of the collar which tightens a steel locking band in the collar to clamp the tube section to the tube below. This is particularly useful in applications where the equipment must remain deployed for long durations. The locking collars also allow the mast to be supported with guy ropes in large head load / high wind loading conditions. The mast sections are keyed to prevent the tube sections from independently rotating. Equipment can be mounted permanently to the mast head using the 4-bolt head configuration or using the 24mm Pin Head to provide quick access to the equipment. A turnable base (manual or electric) can be fitted to the mast to allow for directional head loads. Internal cable can be fitted to provide Cat5e, power, control and micro-coax to the equipment on the mast head.

{slider FEATURES}

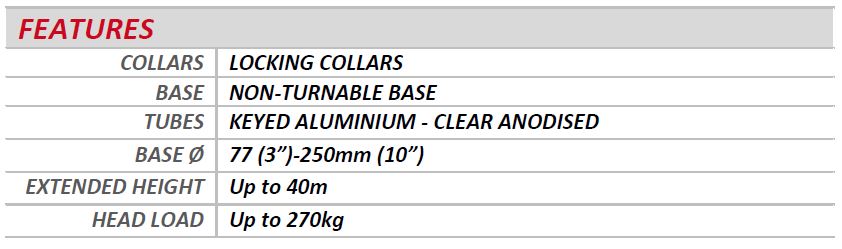

Fireco Steady Mast Features

{slider OPTIONS}

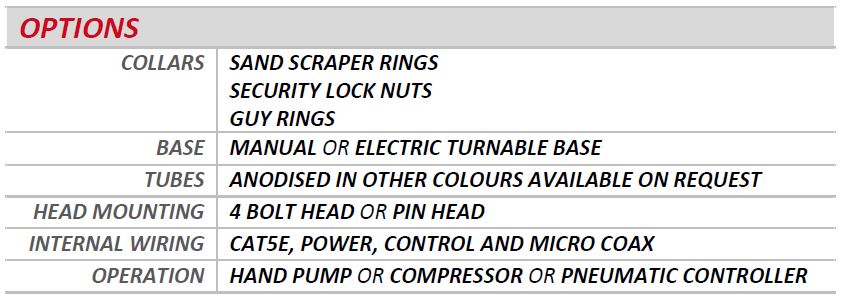

Fireco Steady Mast Options

{slider SPECIFICATIONS}

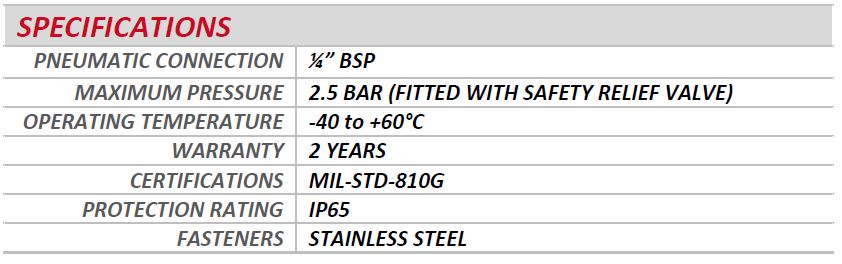

Fireco Steady Mast Specifications

{slider APPLICATIONS}

FIRECO “STEADY Telescopic Masts are suited for Defence, Mining and Construction Applications where the mast will be used in harsh conditions. The main benefit of using a steady mast is the ability to fit sand scraper rings which is an additional wiper seal at the top of each collar that ‘wipes’ the tube section as it is retracting to prevents dirt and dust from getting into the mast and preventing the sections to operate correctly.
FIRECO “STEADY” Telescopic Masts are also suited for Communication Applications where there will be camera or communication equipment mounted to the mast head such as remote monitoring CCTV and Surveillance Applications. The main benefit is that internally coiled cable can be fitted within the mast to provide un-accessible ethernet and power feeds to the camera equipment. The other benefit is the T-handles can be removed and Tamper Proof Locking nuts installed to prevent un-wanted access to the equipment on the mast head.
FIRECO “STEADY” Telescopic Masts are also suited for Lighting Applications where the system needs to be deployed for long durations

{slider 'ULTRALIGHT' STEADY – 77mm diameter ranging between 2.2m to 7m extended height}

 Part NumberExtended Height (m)Retracted height (m)Max Head load (kg)Weight (kg)Max Windspeed (km/h)Max Surface Area (SQM)
3 Section CU.6316 2.253 1.085 25 9 150 0.5
  CU.6317 2.700 1.250 25 10 140 0.5
  CU.6318 3.126 1.384 25 10.5 130 0.5
  CU.6319 3.617 1.555 25 11.5 145 0.3
  CU.6320 4.117 1.725 25 12.5 135 0.3
  CU.6321 4.595 1.895 22 13 125 0.3
  CU.6322 5.117 2.065 20 14 160 0.1
  CU.6323 5.599 2.235 20 15 150 0.1
  CU.6324 6.067 2.405 18 16 140 0.1
4 Section CU.6401 2.441 1.024 20 10 160 0.3
  CU.6402 2.944 1.172 20 10.8 150 0.3
  CU.6403 3.424 1.292 20 11.5 140 0.3
  CU.6404 3.932 1.422 20 12.3 150 0.2
  CU.6405 4.597 1.592 16 13.4 135 0.2
  CU.6406 5.274 1.762 16 14.5 120 0.2
  CU.6407 5.873 1.932 13 15.5 130 0.1
  CU.6408 6.422 2.122 13 16.5 115 0.1
  CU.6409 6.962 2.292 12 17.5 105 0.1

All 'Steady' masts can be supplied with a 'Non-turnable' base (CU.XXXX.N) or a 'turnable' base (CU.XXXX.T)

{slider 'LIGHT' STEADY – 90mm diameter ranging between 2.6m to 8m extended height}

 Part NumberExtended Height (m)Retracted height (m)Max Head load (kg)Weight (kg)Max Windspeed (km/h)Max Surface Area (SQM)
3 Section CL.6331 2.640 1.252 30 12 150 0.7
  CL.6332 3.030 1.382 30 12.5 140 0.7
  CL.6333 3.524 1.552 30 13.5 130 0.7
  CL.6334 3.914 1.722 30 14.5 140 0.5
  CL.6335 4.514 1.892 30 16 130 0.5
  CL.6336 5.014 2.062 25 17 120 0.5
  CL.6337 5.480 2.232 25 18 135 0.3
  CL.6338 5.980 2.402 25 19 125 0.3
  CL.6339 6.439 2.572 20 20 130 0.3
4 Section CL.6416 2.298 1.019 30 11.5 145 0.7
  CL.6417 2.805 1.169 30 12.5 135 0.7
  CL.6418 3.273 1.289 30 13.5 125 0.7
  CL.6419 3.823 1.419 25 14.5 135 0.5
  CL.6420 4.492 1.589 25 16.0 120 0.5
  CL.6421 5.147 1.759 25 17.0 110 0.5
  CL.6422 5.767 1.929 22 18.5 120 0.3
  CL.6423 6.446 2.119 20 20.0 110 0.3
  CL.6424 6.946 2.274 18 21.0 100 0.3
5 Section CL.6501 2.643 1.026 20 12.8 150 0.4
  CL.6502 3.121 1.146 20 14.0 140 0.4
  CL.6503 3.704 1.229 20 14.7 130 0.4
  CL.6504 4.371 1.406 18 16.0 140 0.3
  CL.6505 4.971 1.546 16 17.2 130 0.3
  CL.6506 5.573 1.676 16 18.3 115 0.3
  CL.6507 6.331 1.826 14 19.6 130 0.1
  CL.6508 7.151 2.006 12 21.1 120 0.1
  CL.6509 7.944 2.191 10 22.8 100 0.1

All 'Steady' masts can be supplied with a 'Non-turnable' base (CU.XXXX.N) or a 'turnable' base (CU.XXXX.T)

{slider 'STANDARD' STEADY – 115mm diameter ranging between 2.8m to 11m extended height}

 Part NumberExtended Height (m)Retracted height (m)Max Head load (kg)Weight (kg)Max Windspeed (km/h)Max Surface Area (SQM)
4 Section CS.6431 2.828 1.199 60 17.5 145 1
  CS.6432 3.313 1.339 60 18.9 135 1
  CS.6433 3.920 1.484 60 20.5 125 1
  CS.6434 4.355 1.604 60 21.7 135 0.7
  CS.6435 4.913 1.739 60 23.2 125 0.7
  CS.6436 5.363 1.859 50 24.4 115 0.7
  CS.6437 5.883 1.989 50 25.9 125 0.5
  CS.6438 6.384 2.139 50 27.2 115 0.5
  CS.6439 6.885 2.259 45 28.6 110 0.5
5 Section CS.6516 4.160 1.406 60 22.0 135 0.7
  CS.6517 4.404 1.486 60 22.5 130 0.7
  CS.6518 4.872 1.576 60 23.7 125 0.7
  CS.6519 5.374 1.666 50 25.0 130 0.5
  CS.6520 5.872 1.776 50 26.2 125 0.5
  CS.6521 6.372 1.876 50 27.5 115 0.5
  CS.6522 6.852 1.976 45 28.7 125 0.3
  CS.6523 7.872 2.196 40 31.3 115 0.3
  CS.6524 8.874 2.406 40 34.0 100 0.3
6 Section CS.6601 3.647 1.233 45 21.0 140 0.7
  CS.6602 4.209 1.333 45 22.4 135 0.7
  CS.6603 5.047 1.483 45 24.3 120 0.7
  CS.6604 5.847 1.643 45 26.2 120 0.5
  CS.6605 6.887 1.818 45 28.7 105 0.5
  CS.6606 7.987 2.018 40 31.3 105 0.3
  CS.6607 9.186 2.218 40 34.0 90 0.3
  CS.6608 10.227 2.408 35 36.5 150 1*
  CS.6609 10.932 2.533 35 38.2 140 1**
7 Section CS.6701 3.377 1.170 40 20.9 130 0.5
  CS.6702 4.193 1.290 40 22.7 120 0.5
  CS.6703 4.997 1.410 35 24.4 115 0.5
  CS.6704 5.654 1.515 35 25.8 110 0.5
  CS.6705 6.357 1.630 30 27.4 120 0.3
  CS.6706 7.155 1.748 30 29.0 110 0.3
  CS.6707 7.958 1.881 30 30.8 95 0.3
  CS.6708 9.155 2.070 30 33.4 80 0.3
  CS.6709 10.357 2.240 30 36.0 140 0.3*

All 'Steady' masts can be supplied with a 'Non-turnable' base (CU.XXXX.N) or a 'turnable' base (CU.XXXX.T)
* - With 1 set of guys ropes.
** - With 2 sets of guy ropes.

{slider 'HEAVY' STEADY - 152mm diameter ranging between 4.3m to 17m extended height}

 Part NumberExtended Height (m)Retracted height (m)Max Head load (kg)Weight (kg)Max Windspeed (km/h)Max Surface Area (SQM)
5 Section CH.6516 11.997 3.062 100 72 80 0.9 NC
  CH.6517 12.980 3.378 100 76 70 0.9 NC
  CH.6518 14.995 3.748 80 86.5 60 0.8 NC
  CH.6519 17.040 4.193 70 95.5 55 0.5 NC
6 Section CH.6616 4.312 1.343 150 35.2 150 1
  CH.6617 5.161 1.525 150 39.0 140 1
  CH.6618 5.903 1.657 150 41.8 130 1
  CH.6619 6.938 1.852 150 45.6 120 1
  CH.6620 8.038 2.032 130 49.6 105 1
  CH.6621 9.238 2.247 130 54.0 100 0.8
  CH.6622 10.261 2.425 110 57.8 90 0.8
  CH.6623 11.035 2.562 110 60.5 80 0.8
  CH.6624 11.783 2.712 100 64.3 70 0.8
7 Section CH.6716 6.374 1.649 120 44.0 120 1
  CH.6717 7.171 1.774 120 46.8 110 1
  CH.6718 7.972 1.909 110 49.6 100 1
  CH.6719 8.818 2.029 110 52.5 95 0.8
  CH.6720 9.448 2.119 100 54.7 90 0.8
  CH.6721 10.338 2.259 100 57.8 80 0.8
  CH.6722 11.612 2.459 80 62.2 80 0.5
  CH.6723 12.518 2.609 80 66.0 75 0.5
  CH.6724 13.593 2.754 50 74.5 65 0.5
8 Section CH.6801 6.385 1.559 90 43.3 115 1
  CH.6802 7.172 1.656 90 45.8 105 1
  CH.6803 8.219 1.806 80 49.5 95 1
  CH.6804 9.146 1.936 80 52.6 90 0.8
  CH.6805 10.161 2.066 70 55.8 80 0.8
  CH.6806 11.225 2.219 70 60.9 70 0.8
  CH.6807 12.634 2.409 60 65.5 100 1*
  CH.6808 13.705 2.525 50 68.3 90 0.7*
  CH.6809 14.850 2.726 40 71.8 155 1**
9 Section CH.6901 6.438 1.516 70 43.0 105 1
  CH.6902 7.250 1.633 70 46.3 95 1
  CH.6903 8.304 1.743 60 49.3 100 0.7
  CH.6904 9.223 1.851 60 51.6 90 0.7
  CH.6905 10.186 1.993 50 55.0 85 0.5
  CH.6906 11.191 2.111 50 58.2 75 0.5
  CH.6907 12.466 2.263 40 62.5 90 0.5*
  CH.6908 13.704 2.418 35 66.8 75 0.5*
  CH.6909 14.877 2.578 30 70.2 150 1**

All 'Steady' masts can be supplied with a 'Non-turnable' base (CU.XXXX.N) or a 'turnable' base (CU.XXXX.T)
* - With 1 set of guys ropes.
** - With 2 sets of guy ropes.
NC - No internal Cable

{slider 'SUPER HEAVY' STEADY - 200mm diameter ranging between 6.5m to 40m extended height}

 Part NumberExtended Height (m)Retracted height (m)Max Head load (kg)Weight (kg)Max Windspeed (km/h)Max Surface Area (SQM)
6 Section CX.6616 12.041 2.751 130 106.2 105 1 NC
  CX.6617 13.565 3.044 130 122.3 90 1 NC
  CX.6618 15.018 3.285 120 128.4 80 1 NC
  CX.6619 17.537 3.721 100 145.7 75 0.5 NC
  CX.6620 19.937 4.204 80 161.9 65 0.5 NC
7 Section CX.6716 11.994 2.530 130 109.0 100 1 NC
  CX.6717 13.506 2.747 130 117.8 85 1 NC
  CX.6718 15.059 3.045 120 129.5 75 1 NC
  CX.6719 17.589 3.400 100 144.0 70 0.5 NC
  CX.6720 20.035 3.778 80 158.5 60 0.5 NC
8 Section CX.6816 6.445 1.573 180 66.5 150 1
  CX.6817 8.276 1.884 180 77.0 130 1
  CX.6818 9.785 2.023 140 84.7 110 1
  CX.6819 11.373 2.273 100 94.4 110 0.75
  CX.6820 13.273 2.528 80 104.0 90 0.75
  CX.6821 14.476 2.723 60 110.3 80 0.75
  CX.6822 16.076 2.923 80 118.4 130 1*
  CX.6823 17.676 3.123 70 126.5 120 1*
  CX.6824 19.300 3.375 50 145.6 110 1*
9 Section CX.6916 6.450 1.500 140 66.0 145 1
  CX.6917 8.248 1.720 140 74.8 125 1
  CX.6918 9.750 1.980 130 85.0 105 1
  CX.6919 11.346 2.190 90 93.4 105 0.75
  CX.6920 12.945 2.365 70 101.0 85 0.75
  CX.6921 14.447 2.555 50 108.3 75 0.75
  CX.6922 16.047 2.755 70 116.0 160 1**
  CX.6923 17.643 2.935 50 123.6 140 1**
  CX.6924 19.946 3.230 40 137.0 120 1**
10 Section CX.7001 7.419 1.600 120 70.7 135 1
  CX.7002 9.416 1.845 100 81.2 110 1
  CX.7003 11.813 2.143 85 91.6 90 1
  CX.7004 14.933 2.481 50 107.7 170 1**
  CX.7005 17.338 2.771 50 120.9 140 1**
  CX.7006 19.923 3.093 40 134.0 120 1**
  CX.7007 22.468 3.221 35 150.0 120 0.5***
  CX.7008 24.984 3.387 30 158.5 100 0.5***
  CX.7009 27.423 3.723 25 173.0 80 0.5***
11 Section CX.7101 8.379 1.689 80 75.4 120 1
  CX.7102 9.938 1.870 70 82.4 100 1
  CX.7103 12.179 2.124 60 93.1 85 0.75
  CX.7104 14.899 2.379 50 104.6 160 1**
  CX.7105 18.391 2.741 40 120.7 130 1**
  CX.7106 20.889 3.059 35 134.1 130 0.5***
  CX.7107 23.864 3.164 30 150.4 110 0.5***
  CX.7108 26.894 3.454 25 164.1 90 0.3***
  CX.7109 29.890 3.770 20 180.2 70 0.3***
12 Section CX.7201 14.959 2.297 50 102.5 170 0.5**
  CX.7202 18.479 2.657 35 119.4 150 0.5**
  CX.7203 20.946 2.957 30 132.0 125 0.5***
  CX.7204 23.954 3.017 25 146.7 105 0.5***
  CX.7205 26.950 3.307 20 161.3 85 0.3***
  CX.7206 29.947 3.587 15 175.8 65 0.3***
  CX.7207 32.954 3.877 10 190.4 40 0.2****
  CX.7208 36.452 4.207 8 206.9 35 0.2****
  CX.7209 39.954 4.657 5 231.0 30 0.1****

All 'Steady' masts can be supplied with a 'Non-turnable' base (CU.XXXX.N) or a 'turnable' base (CU.XXXX.T)
* - With 1 set of guys ropes.
** - With 2 sets of guy ropes.
*** - With 3 sets of guy ropes.
**** - With 4 sets of guy ropes.
NC - No internal Cable.

{slider 'GIANT' STEADY - 250mm diameter ranging between 6.5m to 40m extended height}

 Part NumberExtended Height (m)Retracted height (m)Max Head load (kg)Weight (kg)Max Windspeed (km/h)Max Surface Area (SQM)
8 Section CG.6816 12.033 2.398 270 158.0 120 1.0
  CG.6817 13.513 2.618 250 171.8 110 1.0
  CG.6818 15.007 2.838 230 171.8 110 1.0
  CG.6819 17.533 3.208 210 208.2 80 1.0
  CG.6820 20.013 3.588 190 232.0 65 1.0
9 Section CG.6916 12.001 2.266 230 153.0 120 1.0
  CG.6917 13.497 2.446 210 165.0 105 1.0
  CG.6918 15.505 2.726 190 183.4 90 1.0
  CG.6919 17.501 2.986 170 200.0 75 1.0
  CG.6920 20.007 3.316 150 221.8 60 1.0
10 Section CG.7016 6.476 1.534 200 99.0 145 1.5
  CG.7017 8.272 1.764 180 113.4 130 1.5
  CG.7018 9.777 1.964 160 126.5 115 1.5
  CG.7019 11.370 2.174 150 138.9 120 1.0
  CG.7020 12.975 2.384 140 152.5 105 1.0
  CG.7021 14.473 2.574 130 165.2 90 1.0
  CG.7022 16.078 2.784 120 177.4 90 0.5
  CG.7023 17.674 2.994 110 191.0 80 0.5
  CG.7024 19.271 3.214 100 204.8 70 0.5
11 Section CG.7116 6.505 1.512 160 99.0 140 1.5 NC
  CG.7117 8.299 1.722 150 112.7 125 1.5 NC
  CG.7118 9.799 1.892 140 123.7 110 1.5 NC
  CG.7119 11.399 2.082 110 135.5 115 1 NC
  CG.7120 12.999 2.272 100 147.8 100 1 NC
  CG.7121 14.499 2.462 90 159.2 85 1 NC
  CG.7122 16.099 2.672 80 173 85 0.5 NC
  CG.7123 17.709 2.852 70 184.8 75 0.5 NC
  CG.7124 20.169 3.162 60 205 60 0.5 NC
12 Section CG.7201 7.507 1.61 130 104.5 150 1
  CG.7202 9.51 1.84 120 119.2 130 1
  CG.7203 12.003 2.11 100 137.5 105 1
  CG.7204 15.007 2.44 80 159.6 90 0.5
  CG.7205 17.508 2.72 70 178.5 75 0.5
  CG.7206 20.008 3.02 60 196.9 60 0.5
  CG.7207 22.513 3.05 50 214.9 100 1**
  CG.7208 25.018 3.3 40 233 80 0.8**
  CG.7209 27.513 3.54 30 250.8 60 0.6***
13 Section CG.7301 8.509 1.698 90 109.4 130 1
  CG.7302 10.009 1.878 80 121 115 1
  CG.7303 12.505 2.118 70 138.3 90 1
  CG.7304 14.999 2.368 60 155.7 85 0.5
  CG.7305 18.505 2.718 55 180.6 65 0.5
  CG.7306 20.999 3.028 50 198.5 100 1**
  CG.7307 24.005 3.058 45 216.8 80 0.8**
  CG.7308 26.997 3.338 40 238.6 65 0.65***
  CG.7309 30.011 3.628 35 260.5 50 0.5***
14 Section CG.7401 15.002 2.346 60 152.4 80 0.5
  CG.7402 18.519 2.676 50 175.8 60 0.5
  CG.7403 21.011 2.936 40 193 95 1**
  CG.7404 24.002 2.976 35 212.2 75 0.8**
  CG.7405 26.995 3.226 30 231.5 60 0.65***
  CG.7406 29.988 3.476 25 250.7 45 0.5***
  CG.7407 33.004 3.736 20 270 40 0.3***
  CG.7408 36.502 4.036 15 293.8 35 0.2****
  CG.7409 40.01 4.346 10 317.6 30 0.1****

All 'Steady' masts can be supplied with a 'Non-turnable' base (CU.XXXX.N) or a 'turnable' base (CU.XXXX.T)
* - With 1 set of guys ropes.
** - With 2 sets of guy ropes.
*** - With 3 sets of guy ropes.
**** - With 4 sets of guy ropes.
NC - No internal Cable.

{slider MOUNTING OPTIONS}

FIXED BRACKETS

ModelPart NumberDiameter (mm)Round roof BracketSqaure Roof BracketUpper Mounting BracketReinforced Upper BracketLower Mounting Bracket

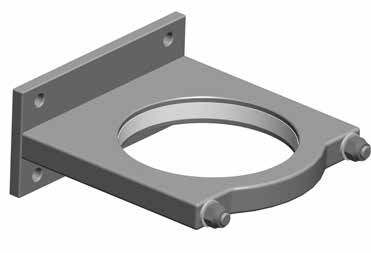

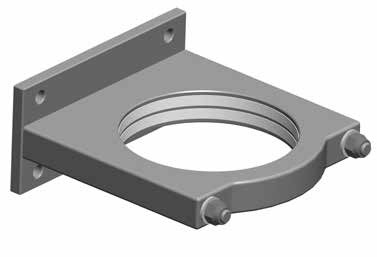

Fireco Accessories Bracket Roof Round		Fireco Accessories Bracket Roof SquareFireco Accessories Bracket UpperFireco Accessories Bracket Upper ReinforcedFireco Accessories Bracket Lower
Zero CZ.XXXX 64 BK.30001 BK.30053 BK.30202 NA BK.30102
Ultralight CU.XXXX 77 BK.30003 BK.30054 BK.30203 NA BK.30102
Light CL.XXXX 90 BK.30004 BK.30055 BK.30204 NA BK.30104
Standard CS.XXXX 115 BK.30006 BK.30056 BK.30206 NA BK.30106
Heavy CH.XXXX 152 BK.30007 BK.30057 BK.30207 BK.30207.R BK.30107
Super Heavy CX.XXXX 200 NA BK.30058 BK.30208 BK.30208.R BK.30107
Giant CG.XXXX 250 NA BK.30061 NA BK.30211.R BK.30111

 OTHER MOUNTING OPTIONS

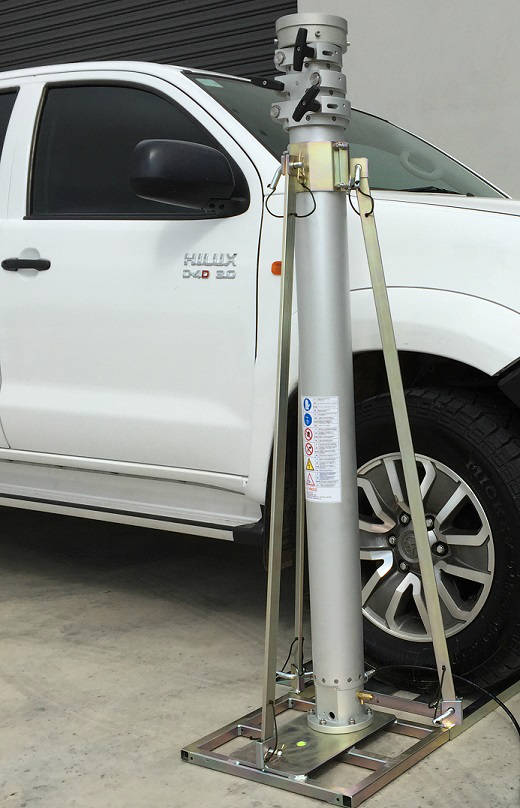

DRIVE OVER WHEEL MOUNTFOUR LEG QUAD-POD
Fireco Telescopic Mast Pole tower Mounting Option Drive Over Wheel SupportFireco Telescopic Light Mast Pole Tower Mounting Option Four Leg Quad Pod

{/sliders}

Emergency Vehicles, Communications, Photography/Surveillance
